TACHOMETER_WITCH_SOUARE_WAVE_OUT_PUT

Published:2009/7/1 22:11:00 Author:May | From:SeekIC

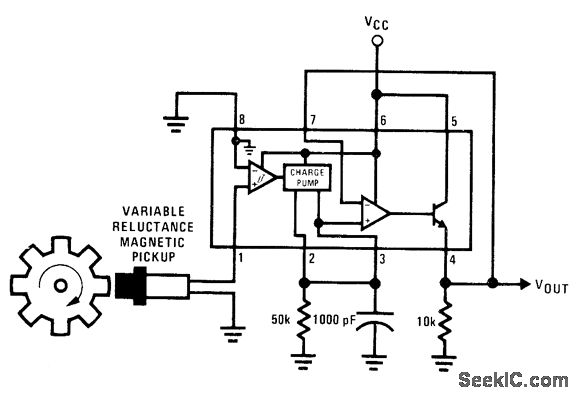

National LM2907 tachometerIC providessquare-wave output at same frequency as sine wave generated by magnetic pickup,for use asline driver in automatic control system.－″Linear Applications,vol .2, National Semiconductor、Santa Clara、CA、1976,AN-162,p12－13．
