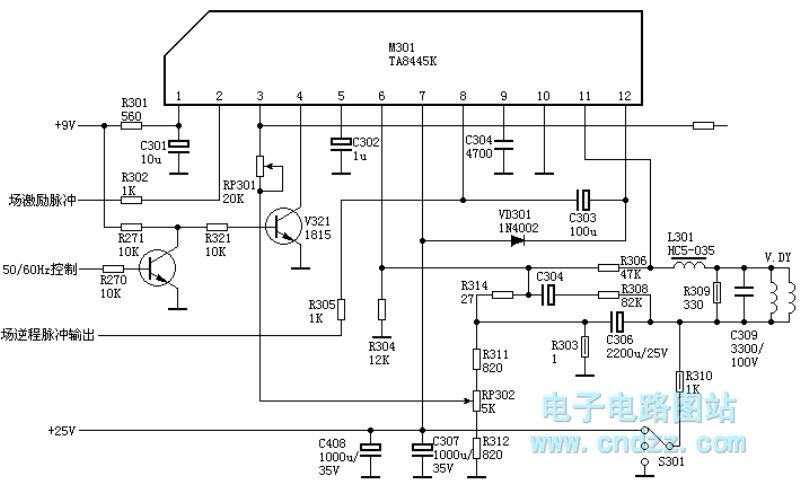

TA8445K Field output circuit

Published:2011/11/3 3:08:00 Author:Ecco | Keyword: Field output | From:SeekIC

Pin 1: 9V-- power source 1 pin 2: 0.2V-- field trigger pulse input end pin 3: 1.3V-- field control pin 4: L/HV--50/60Hz transform (50Hz=L; 60Hz=H) pin 5: 3V-- external connection saw-tooth wave generating capacitor pin 6: 3.2V-- negative feedback pin 7: 25V-- power source 2 pin 8: 1.2V-- pump power source promotion end pin 9: 0.8V-- filter capacitor pin 10: 0V-- ground pin 11: 13V-- field output pin 12: 24.6V-- power source 3
