TA8173 surround sound control integrated circuit

Published:2011/7/6 5:57:00 Author:chopper | Keyword: surround sound, control integrated circuit | From:SeekIC

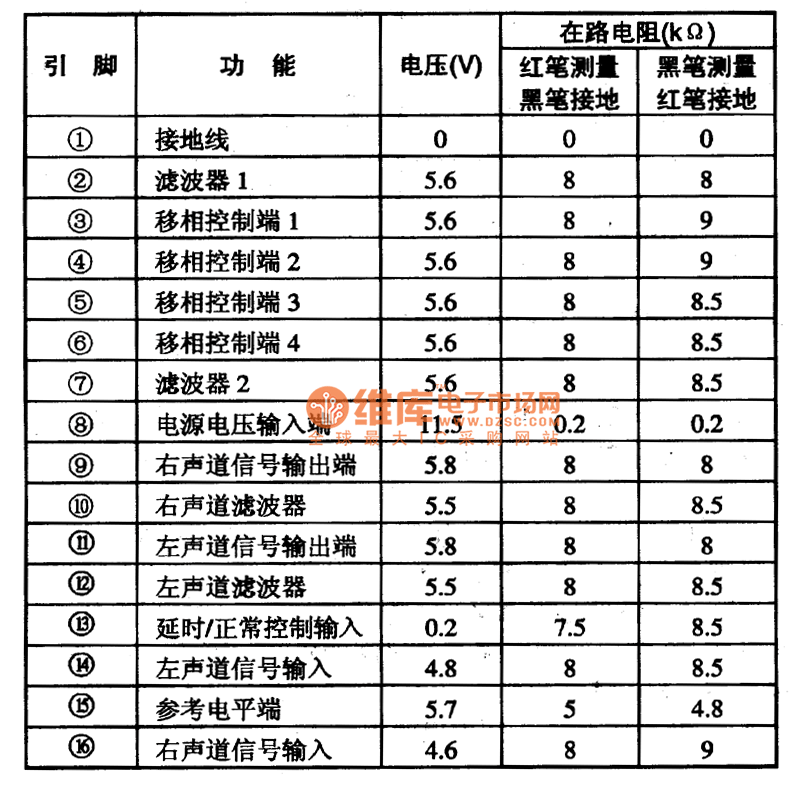

TA8173AP is a surround sound control integrated circuit produced by Company Toshiba ,and it is applied to karaoke, TV sound system.1.The inner circuit and typical application circuit of TA8173APThe inner circuit and typical application circuit of TA8173AP integrated package are shown as picture 1. 2.function and data of pins of TA8173APTA8173AP integrated circuit adopts dual inline 16 pinned package,and its function and data of pins are shown as chart 1.
