TA8126 DC/DC conversion integrated circuit

Published:2011/6/30 2:01:00 Author:chopper | Keyword: DC/DC, conversion, integrated circuit | From:SeekIC

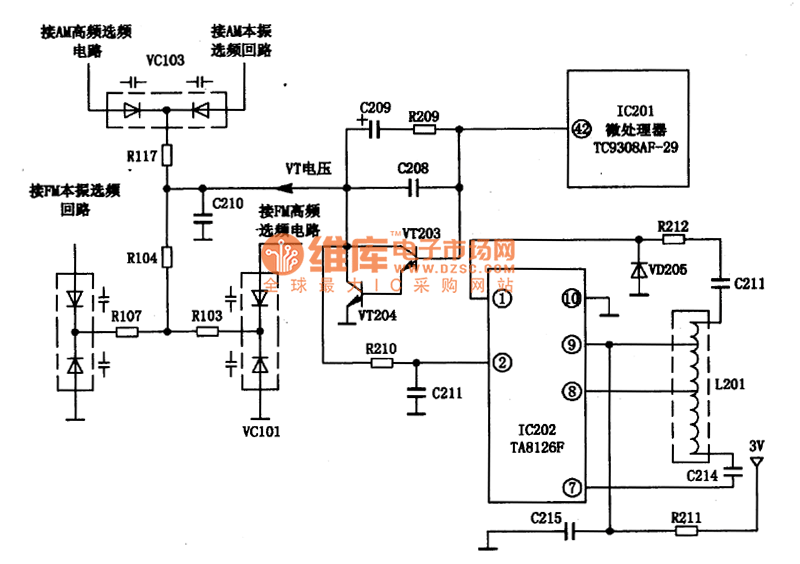

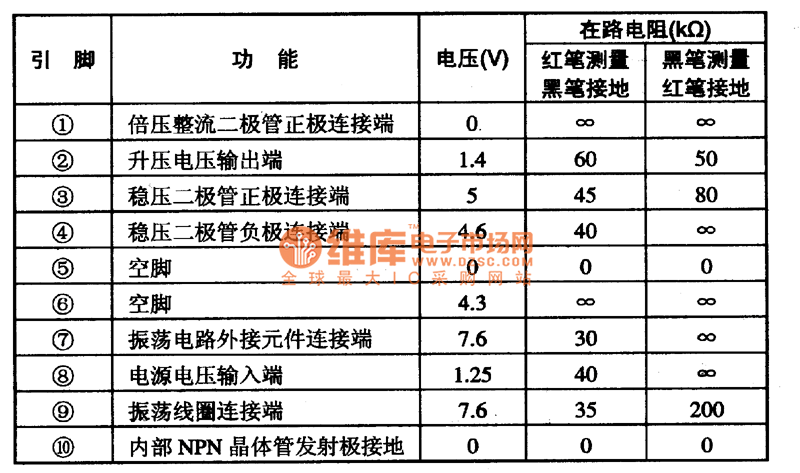

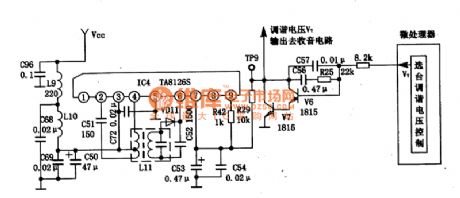

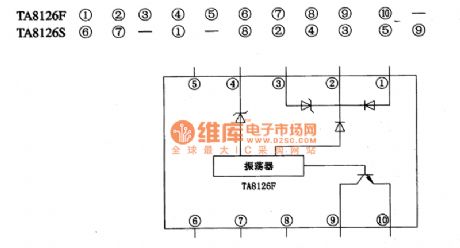

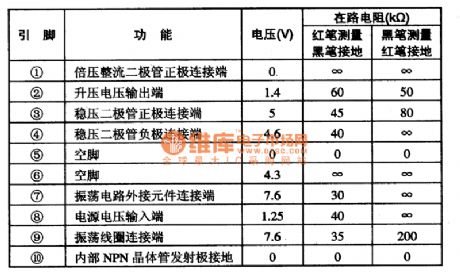

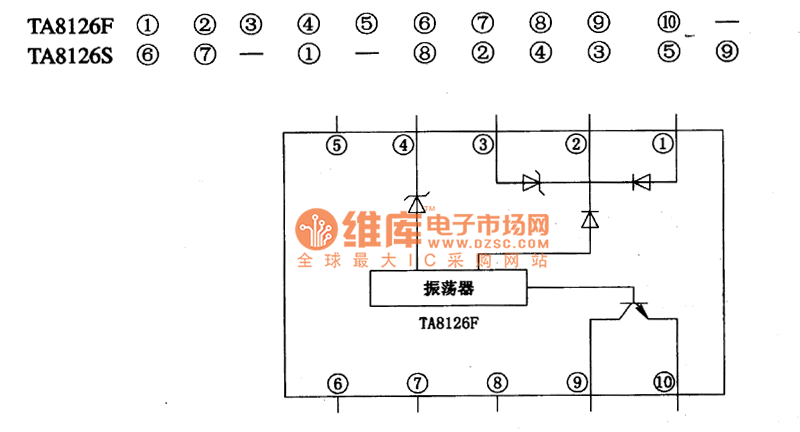

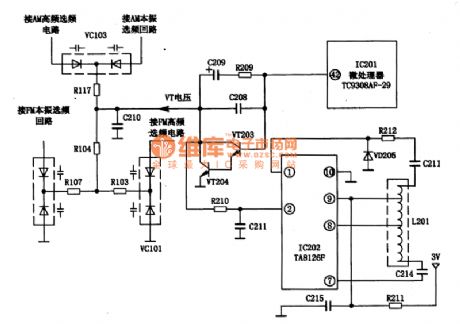

TA8126 is a DC conversion integrated circuit,and it is applied to digital tuned radio systems to provide tuned selective calling circuit with tuned voltage by promoting the DC 3V voltage to 15V around tuned voltage.TA8126 has two encapsulation methods and we can distinguish them by different suffix letters.And TA81265 adopts single inline 9 pinned package;TA8126F adopts dual inline 10 pinned package.1.inner circuit and function of pins The inner circuit of TA8126F integrated package is shown as picture 1,and the function and data of pins of its integrated circuit are shown as chart 1.
