TA8119 monolithic stereo playback integrated circuit

Published:2011/7/5 1:13:00 Author:chopper | Keyword: monolithic, stereo, playback, integrated circuit | From:SeekIC

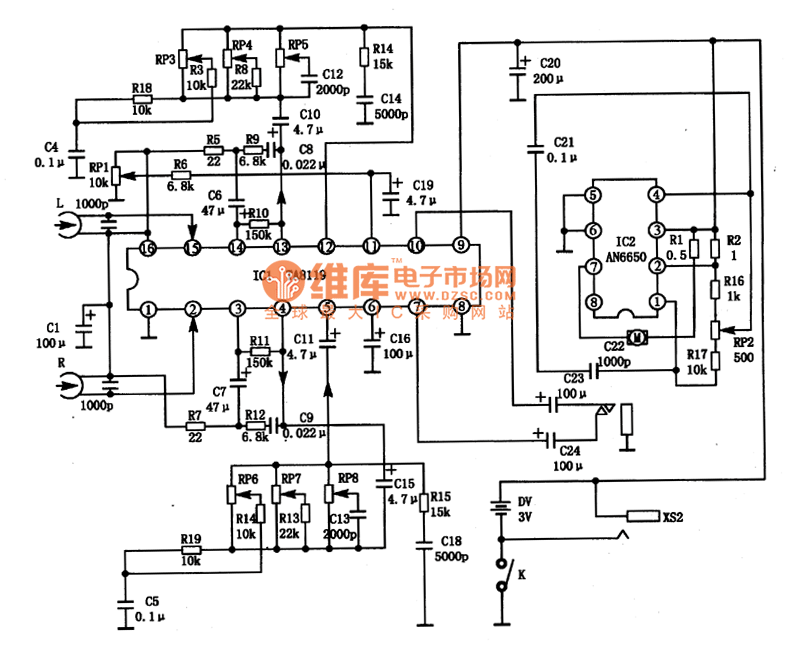

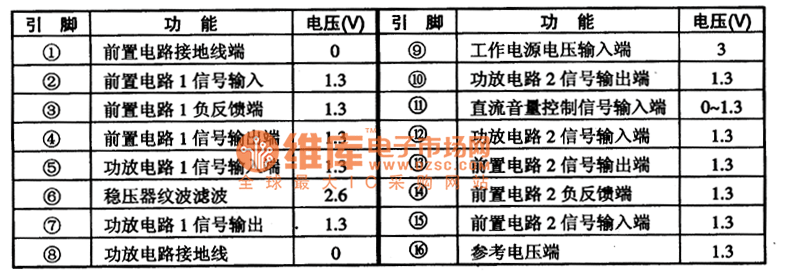

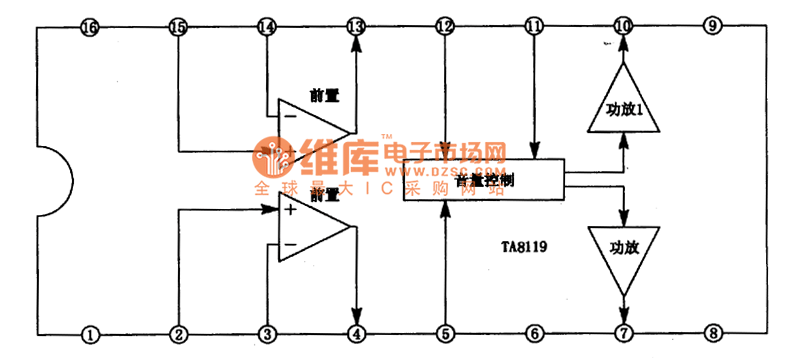

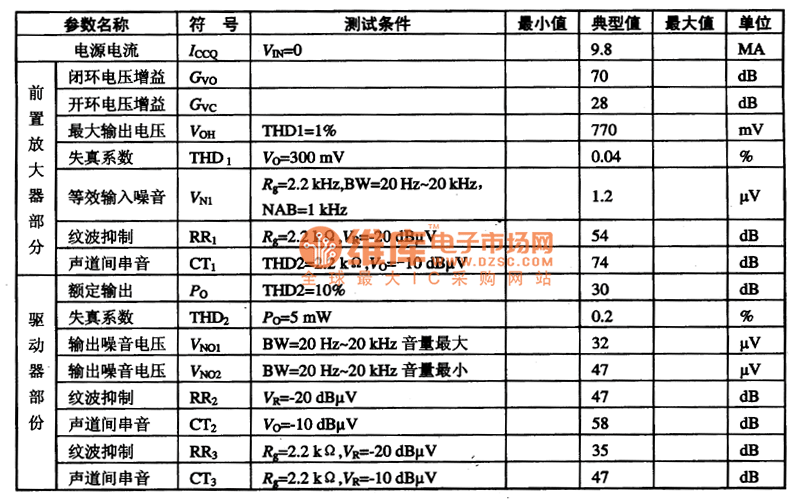

TA8119 is a monolithic playback integrated circuit produced by Japanese company TOSHIBA,and it is applied to mini cassette players.1.inner circuit and function of pins TA8119 integrated package includes playback circuit whose golden part is used in 3V stereo earplugs type cassette.The preamplifier and headphones are independent, and loop gain is 30db and it includes ripple wave as well as filtering wave and extensible dc voltage input level.The inner circuit of TA8119 integrated package is shown as picture 1.This IC has two encapsulation methods.
