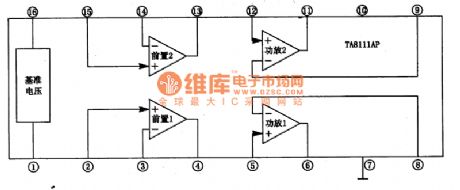

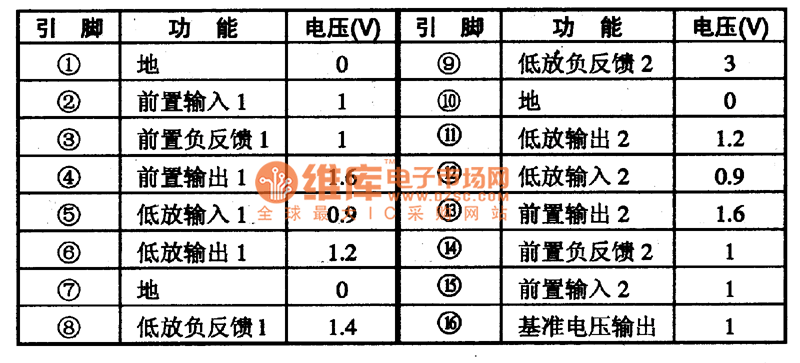

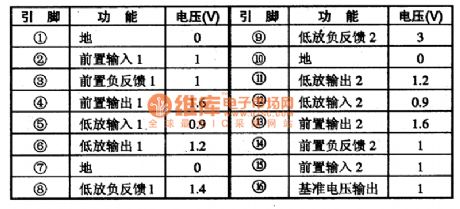

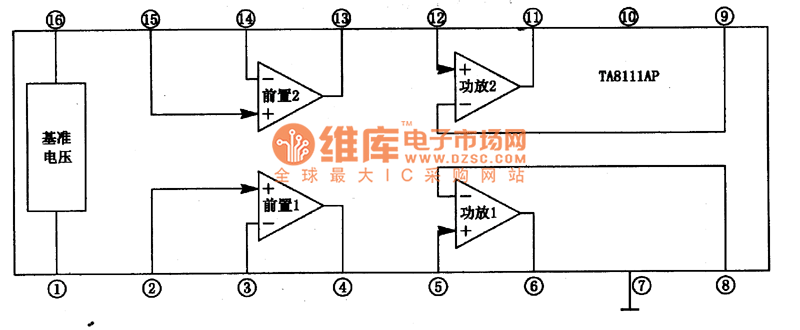

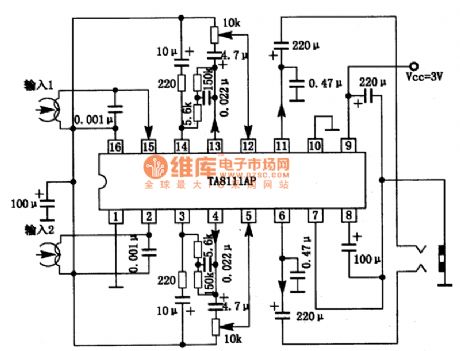

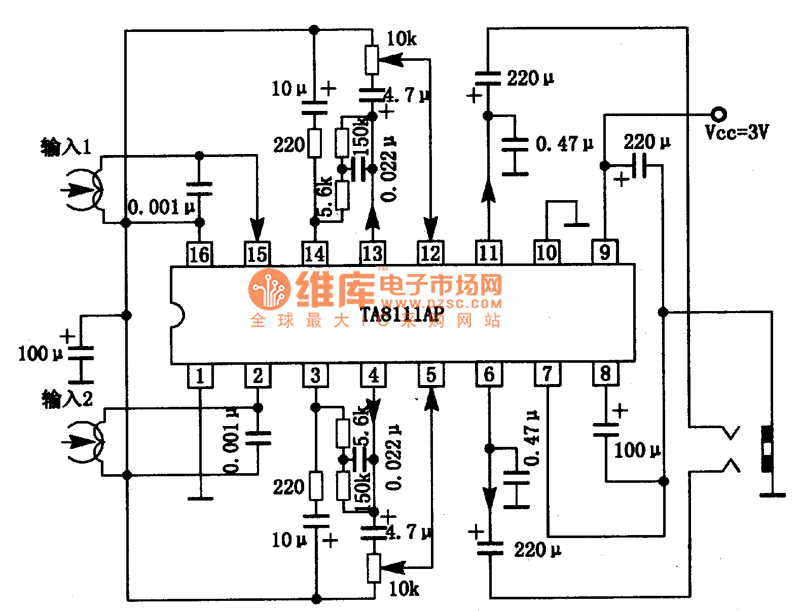

TA8111AP is a monolithic playback integrated circuit produced by Company TOSHIBA,and it is applied to mini acoustic system like low-voltage walkman and so on.1.inner circuit and function of pins The inner circuit of TA8111AP integrated package includes two same preposing equilibrium amplifier circuits,two same power amplifier circuits. This IC adopts dual inline 16 pinned package.Its function and data of pins are shown as chart 1.
