Static electricity eliminator circuit diagram 2

Published:2011/6/9 4:08:00 Author:Lucas | Keyword: Static electricity eliminator | From:SeekIC

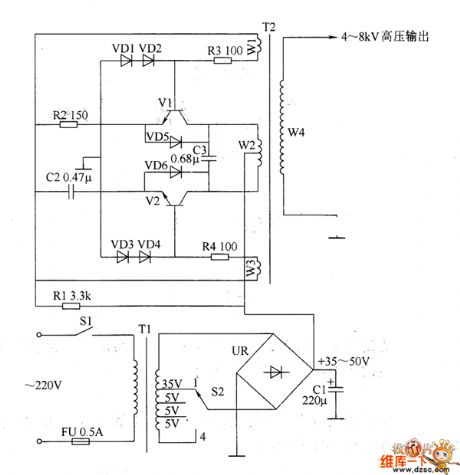

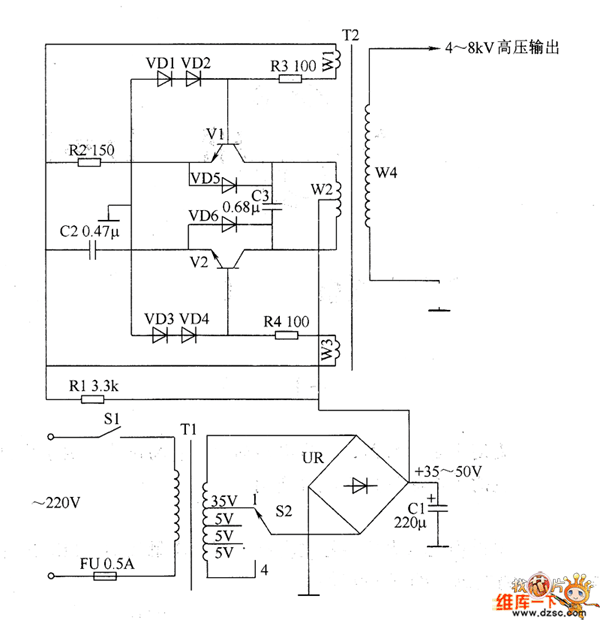

The static electricity eliminator circuit is composed of the power circuit and oscillation step-up circuit, and the circuit is shown as the chart. Power circuit consists of the power switch S1, fuse FU, power transformer T1, bridge rectifier UR, filter capacitor C1 and voltage selecting switch S2. Oscillation step-up circuit consists of the resistors R1 ~ R4, capacitors C2 and C3, diodes VD1 ~ VD6, step-up transformer T2 and transistors VI, V2. R1 selects lW metal film resistor; R2 ~ R4 select 1/4W metal film resistors. C1 uses aluminium electrolytic capacitor with the voltage in 63V: C2 and C3 select the CBB capacitors with the voltage in 250V. VD1 ~ VD4 use 1N4007 silicon rectifier diodes; VD5 and VD6 use 1N5406 silicon rectifier diodes.
