Static driver interface diagram

Published:2011/5/9 3:00:00 Author:Ecco | Keyword: Static driver , interface | From:SeekIC

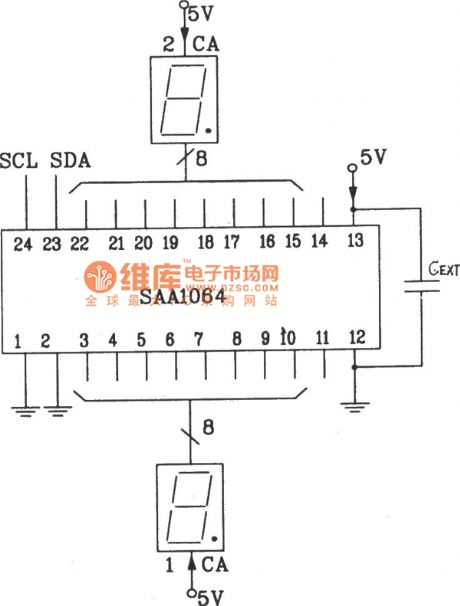

The static driver interface circuit diagram between SAA1064 serial I2C bus and LED display driver integrated circuit In the quiescent mode, LED uses directly two 8-bit output port driver and it does not need to add an external driver. As the static drivers do not need to switch the scan circuit, the directly external capacitor side CEXT in the figure is connected to ground directly or Vcc. The ends of Vcc and VEE are added to decoupling capacitor, the general value is 0.01μF.
