Single-key touching lamp switch circuit (2)

Published:2012/8/30 22:40:00 Author:Ecco | Keyword: Single-key , touching , lamp , switch | From:SeekIC

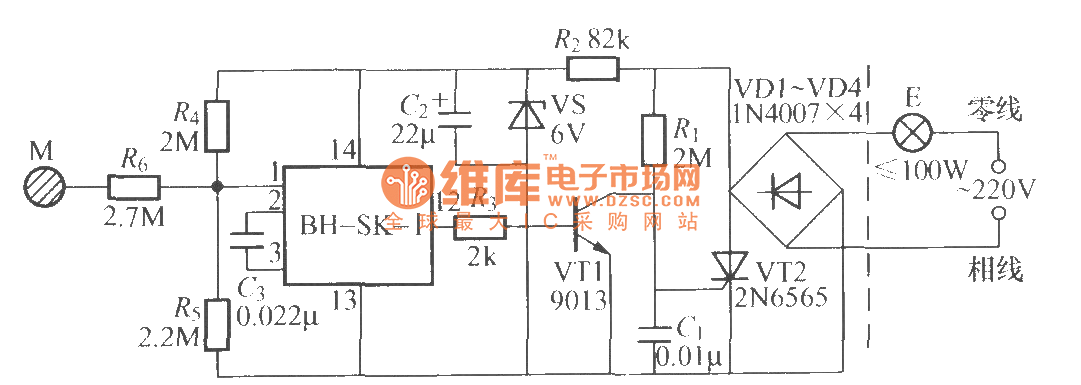

As shown in the figure, it is a single-key touching light switch with voice-activated integrated circuit, it only uses one electrode M to turn on the light and turn off the light. The circuit aAso adopts two-wire connection, it can directly replace the normal mechanical switch.
