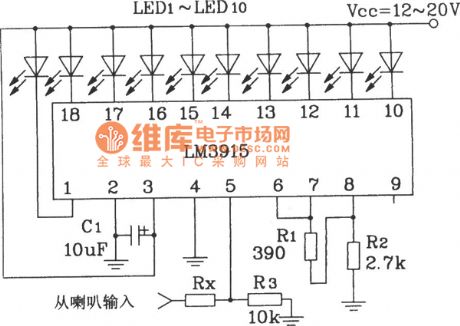

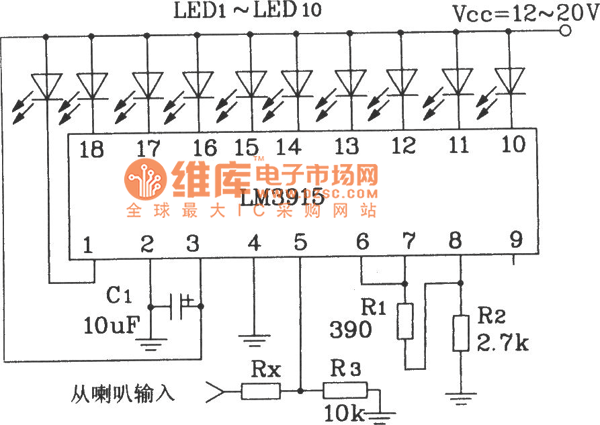

Simple audio power meter circuit diagram composed of LM3915 Note: If the internal resistance of speaker is 4Ω, Rx takeS 10kΩ; the internal resistance is 8Ω, Rx takes 18kΩ, internal resistance is 16Ω, Rx is 30kΩ The more perfect way of this IC showing AC signal amplitude is using half-wave AC signal converter to change the DC signal, and then the DC signal is sent to the IC's input.
