Shanghai Excelle sound system circuit

Published:2013/12/16 20:48:00 Author:lynne | Keyword: Shanghai Excelle sound system circuit, | From:SeekIC

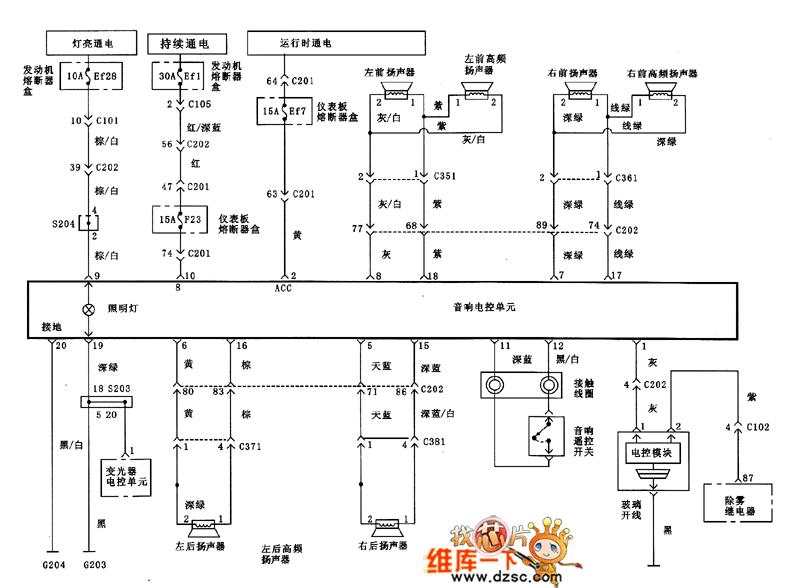

Shanghai Excelle sound system circuit shown in Figure:
