Several motors winding serial energized dry circuit

Published:2011/9/14 7:51:00 Author:nelly | Keyword: motor, winding, serial energized, dry | From:SeekIC

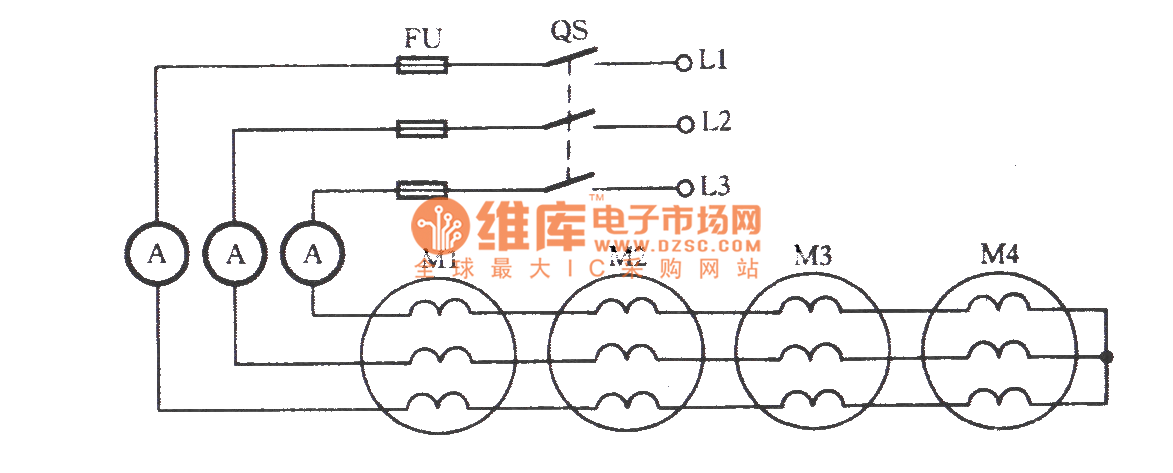

Ifthereareseveralsimilarorclosemotors,wecanmakeallthewindingsserialaccordingtothepicture,andthenweusethewoodblocktoholdtherotor,sotherotorcannotmovearound.Last,theswitchcanbeclosedtobeenergizedandheated.Weshouldobservethevalueofcurrentbytheammeter.Thesmallestcapacitanceshouldbe70％～80％ofthemotorratedcurrent.Ifthecurrentistoolarge,moremotors canbeseriallyconnected;ifthecurrentistoosmall,themotorscanbereduced.Thedryingrequirementcanbemetforseventoeighthoursofenergization.
