SYNC_SEPARATOR

Published:2009/7/11 3:08:00 Author:May | From:SeekIC

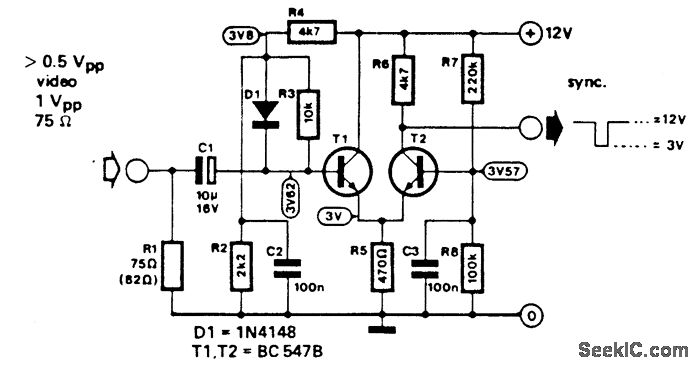

This circuit separates the synch from the composite video signal.It uses a two－transistor comparator．Output is 9 VPP a 0.5-VPP (minimum) video input signal.
