SWITCHING_4500_W_BELOW_5_kHz

Published:2009/7/14 2:05:00 Author:May | From:SeekIC

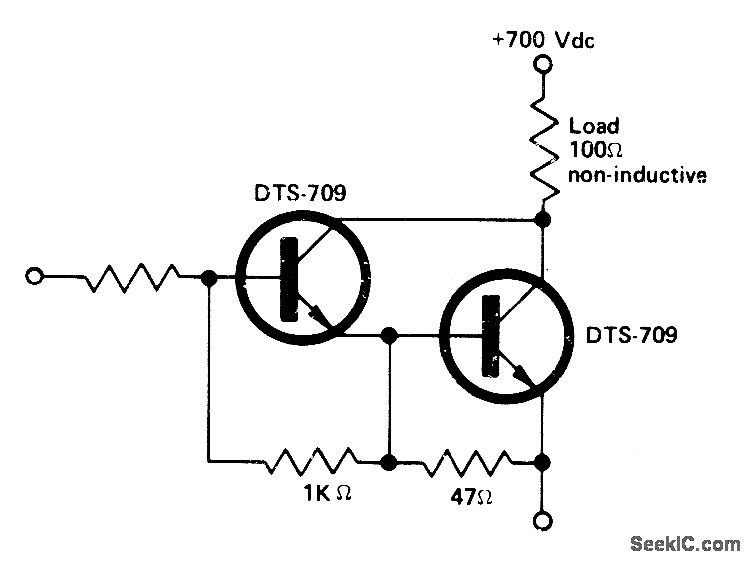

Simple Darlington connection of Delco DTS-709 transistors serves for switching of uρ to 700 V at 7A for low-speed motor control,regulator,and inverter applications．-″Low cost 'Dualithic Darlington'Switches 4500 Watts at up to 10 kHz,″ Deleo, Kokomo, IN, 1973, Application Note 54,p 3.
