STR - F6653 switching power thick-film integrated circuit diagram

Published:2012/8/16 20:30:00 Author:Ecco | Keyword: switching power, thick-film , integrated circuit | From:SeekIC

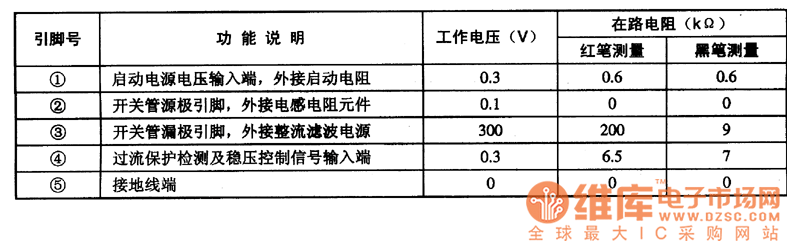

STR - F6653 is the switching power thick-film integrated circuit produced by Japan Sanyo, and it is widely used in Toshiba series of large-screen digital color TVs. (1) Features and functionsSTR-F6653 IC contains incentives driver control circuit, start circuit, oscillation circuit, overcurrent protection circuit, overvoltage and overtemperature protection circuit and other ancillary unit circuits. (2) pin functions and dataSTR - F6653 uses a separate pin package, and the pin functions and data are shown in following Table. (3) Typical application circuitSTR - F6653 IC consisting of a typical application circuit of the switching power supply circuit as shown.
