STR-6656 switching power supply thick-film integrated circuit diagram

Published:2011/5/6 4:39:00 Author:Ecco | Keyword: switching power supply , thick-film , integrated circuit | From:SeekIC

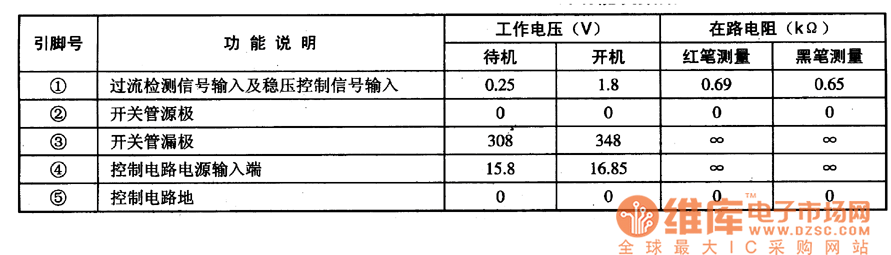

STR-6656 is the switching power supply thick film integrated circuit produced by Sanyo, it is widely used in large screen color (such as Changhong HP Series Rear Projection Color TV) and DVD players, air conditioners, and other switching power supply circuits. 1. Features of functionSTR-6656 integrated circuit includes starting circuit(STAJRT), oscillation circuit (OSC), latch circuit (LATCH), switching tube and driving motivation circuit, overvoltage protection circuit (OVP), overcurrent protection circuit (OCP), over-temperature protection circuit (TSD) and some other ancillary functions circuit. 2. Pin functions STR-6656 IC uses the package with pins in a single line, the pin functions and data are listed in Table. STR-6656 integrated circuit pin functions and data
