STR-6654 thick film switching power supply integrated circuit diagram

Published:2011/5/6 4:47:00 Author:Ecco | Keyword: thick film , switching, power supply , integrated circuit | From:SeekIC

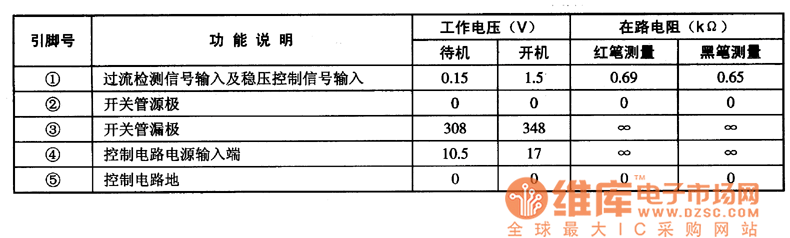

STR-6654 is the switching power supply thick film integrated circuit produced by Sanyo, it is widely used in rear projection color TV (for example, Changhong HP Series precision ), DVD players and other switching power supply circuits. 1. Features of functionSTR-6654 IC includes start circuit, driver circuit, switching adjusting tube, over-voltage protection circuit, over-current protection circuit and other ancillary functions circuit. 2. Pin functions and data STR-6654 IC uses 5-foot single-line package, the pin functions and data are listed in Table. The data is measured in Changhong HP Series of precision rear projection color TV. STR-6654 integrated circuit pin functions and data
