STK6722H motor control and driver IC diagram

Published:2012/8/16 20:21:00 Author:Ecco | Keyword: motor control , driver IC | From:SeekIC

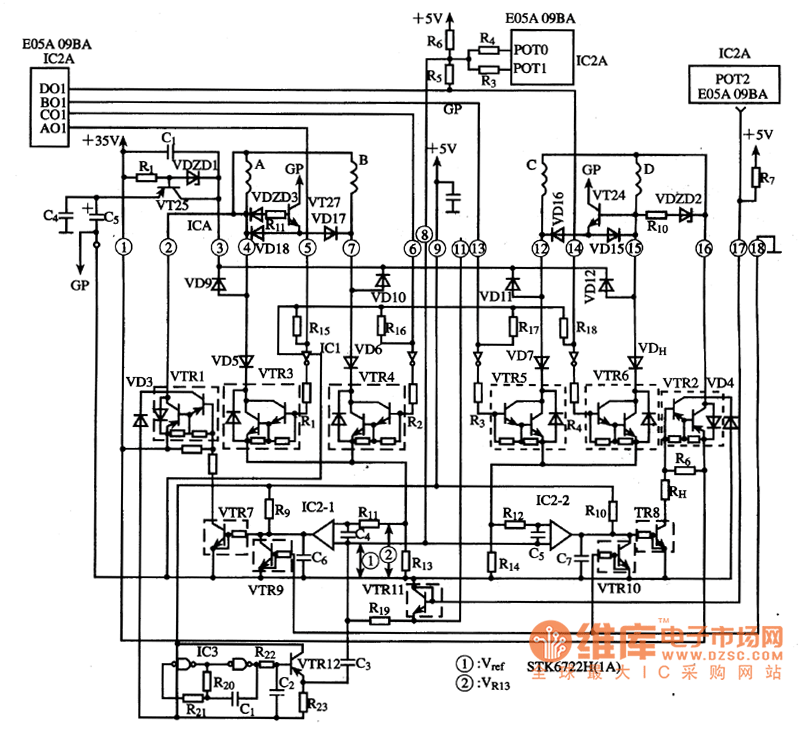

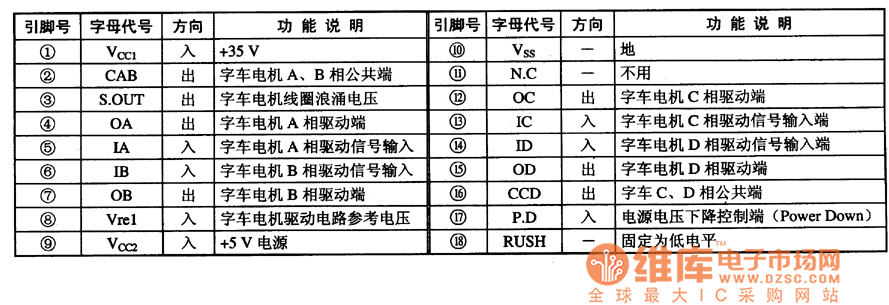

STK6722H is the thick-film hybrid motor control and drive IC produced by Japan Sanyo, and it is widely used in the printer. (1) pin functionsSTK6722H IC uses 18 - pin separate package, and pin functions are shown in following Table . (2) Typical application circuitSTK6722H integrated circuit's internal circuit and the application circuit of printer control and driver circuit are shown in the figure.
