STIMULUS_ISOLATOR

Published:2009/7/8 2:09:00 Author:May | From:SeekIC

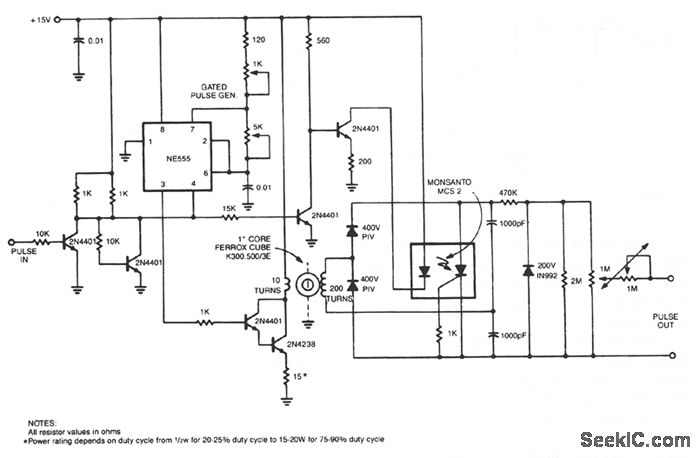

This stimulus isolator uses a photo-SCR and a toroid for shaping pulses of up to 200 V at 200μA.
