STEPPER_RELAY_RESET_AND_LATCH

Published:2009/7/15 22:55:00 Author:Jessie | From:SeekIC

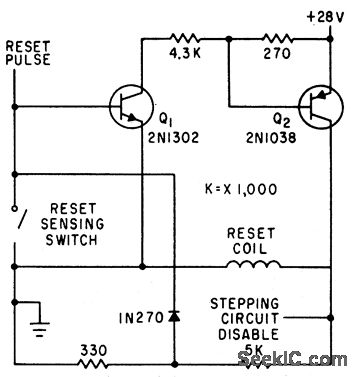

Reset circuit deenergizes lip-lop that controls coils of stepper relay, and provides latching to keep reset coil energized until wiper senses reset contact.-F. W. Kear, Coils Operate Stepping Relay at Higher Speed, Electronics, 35:6, p 60-63.
