STATIC_DETECTOR

Published:2009/7/10 2:43:00 Author:May | From:SeekIC

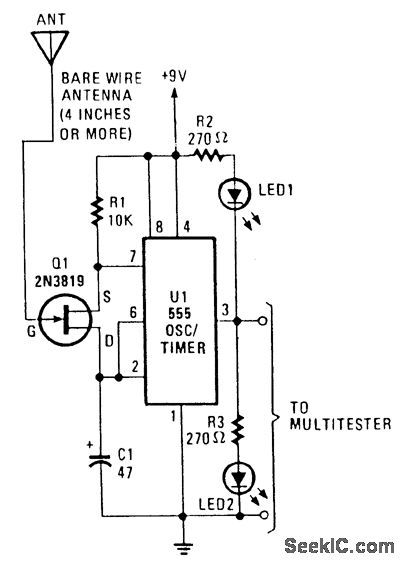

This circuit detects the presence of electrostatic fields by using an FET to alter the flash rate of two LEDs. The FET is installed in the timing circuit and causes a change in the flash rate of the two LEDs.
