STANDARD_MICROMODULE_LOGIC_GATE

Published:2009/7/16 1:38:00 Author:Jessie | From:SeekIC

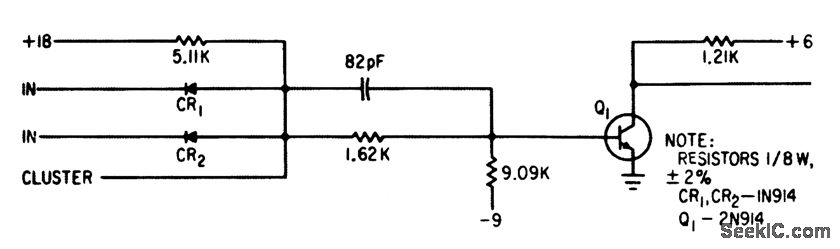

Single-transistor gate can have maximum fan-in of 20 and maximum fan-out of 4. Power dissipation is 75 mw average, pair delay is 60 nsec, and rise time 30 nsec.-A. S. Rettig, Computers in the Front Lines: Micromodules Make if Possible, Electronics, 36:1, p 77-81.
