ST6368B4-FHO single-chip microcomputer integrated circuit diagram

Published:2012/8/16 20:14:00 Author:Ecco | Keyword: single-chip , microcomputer, integrated circuit | From:SeekIC

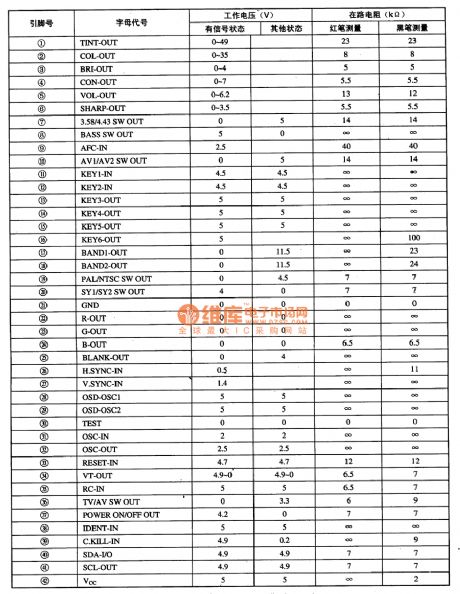

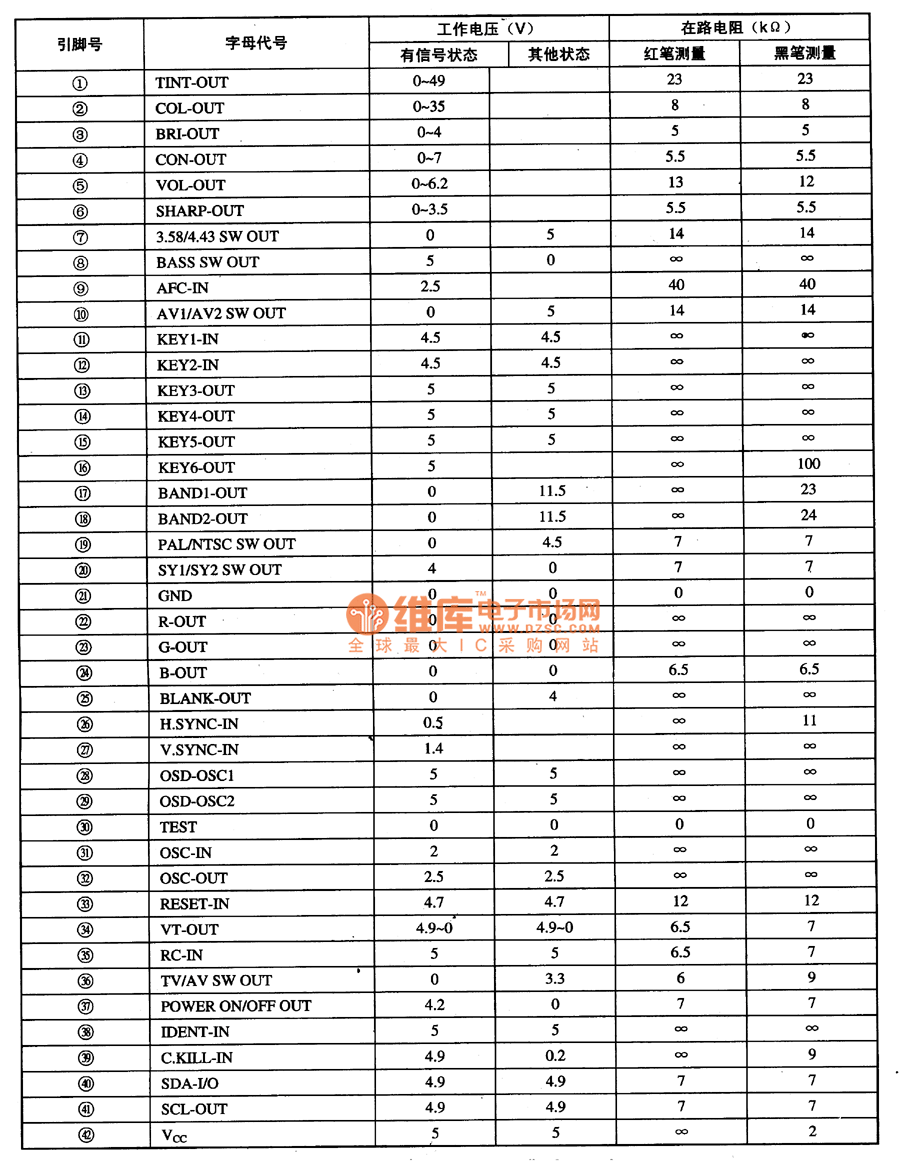

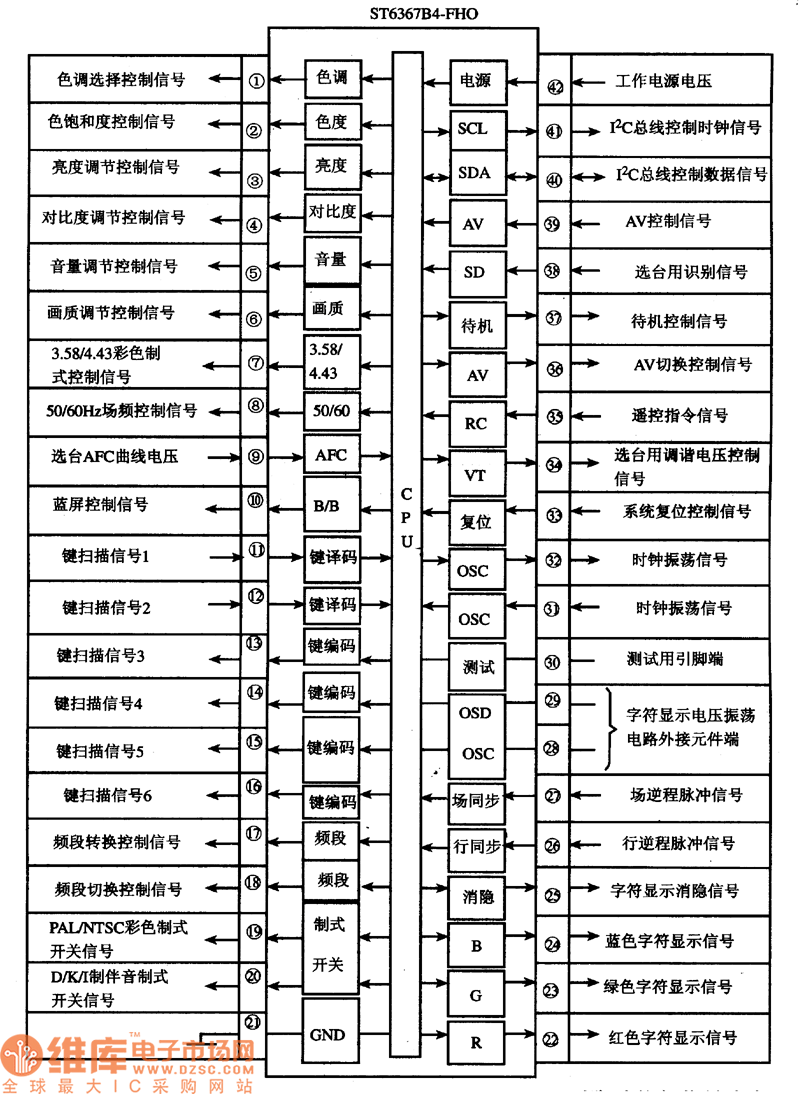

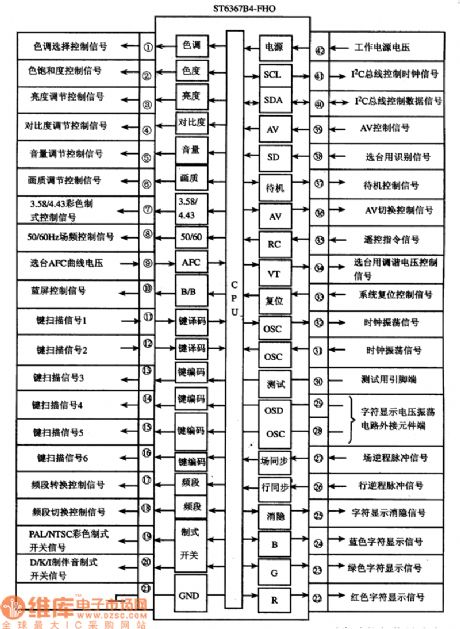

ST6368B4-FHO is a single - chip microcomputer IC which is widely used in Konka series of large-screen digital color TVs.(1) FeaturesST6368B4-FHO IC integrates central processing unit (CPU), clock oscillation circuit, reset circuit, key scan pulse generating circuit, key scan command signal decoding circuit, I2C bus control circuit, screen display circuit, system control circuit, remote control instruction signal processing circuit and other control circuits and other components with additional functions.(2) pin functions and dataST6368B4-FHO IC uses 42 - pin dual in-line package, and the internal block diagram, pin functions and signal flowing are shown as the chart, and pin-letter code and data are shown in following Table.
