SSB_DETECTOR

Published:2009/7/21 22:18:00 Author:Jessie | From:SeekIC

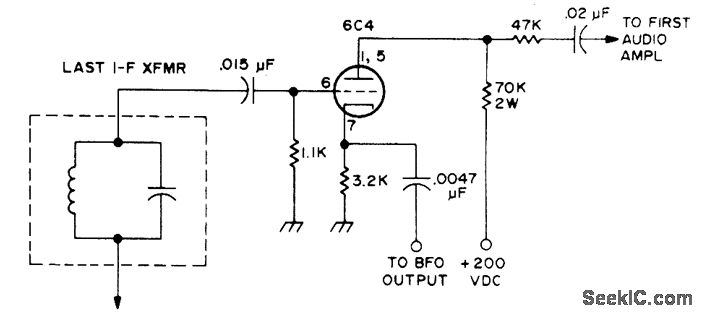

Can be switched in and out of most tube-type AM receivers for use in place of regular detector stage Requires stable BFO.-Novice Q＆A,73 Magazine, March 1977,p187.
