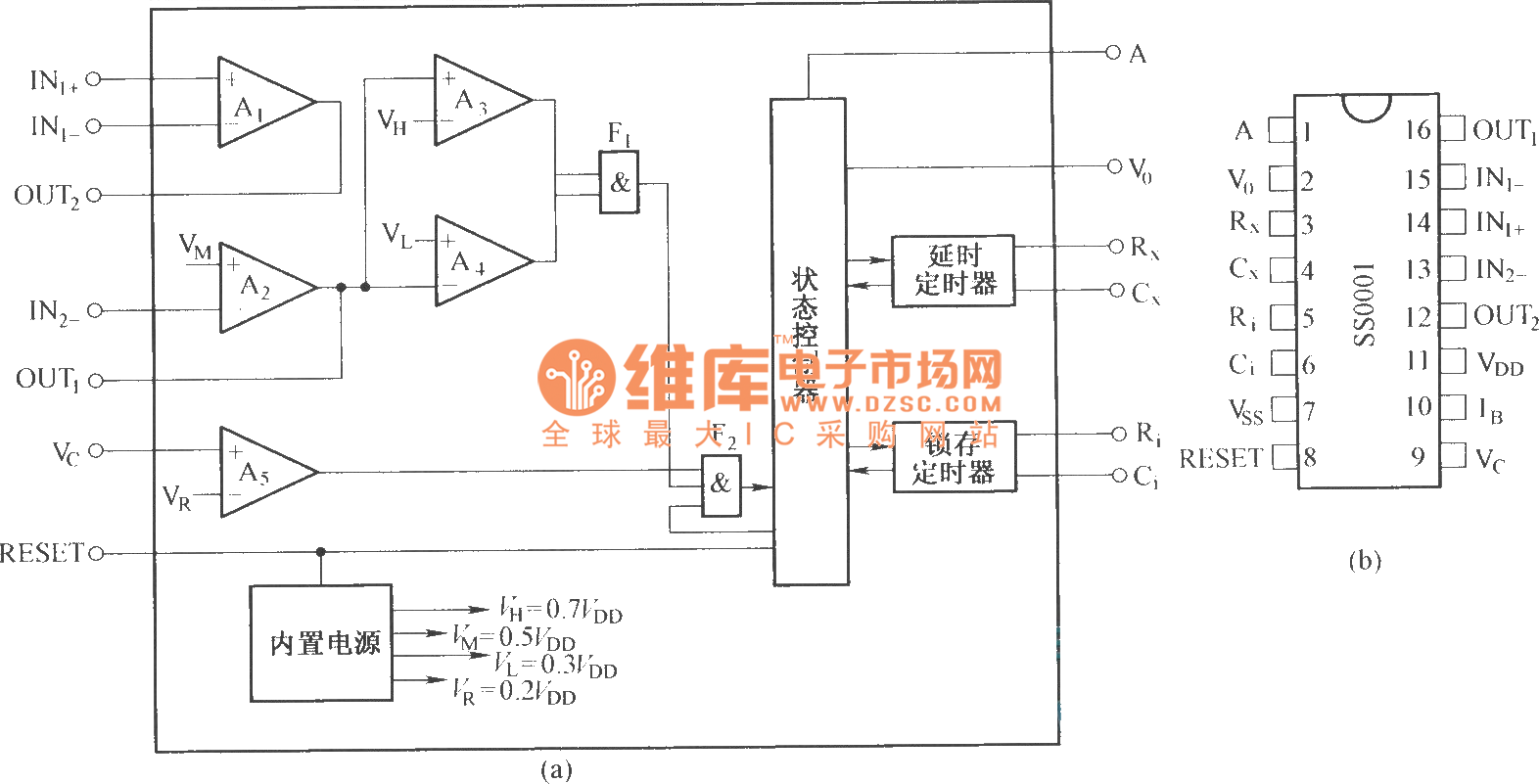

SS0001 internal circuit schematic diagram

Published:2011/9/27 21:13:00 Author:Rebekka | Keyword: internal circuit schematic | From:SeekIC

SS0001 is a general-purpose sensor control circuit. It not only matches with the output of pyroelectric infrared sensor perfectly, but also matches with a variety of other sensors.
