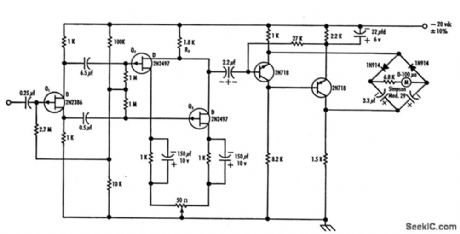

SQUARING_CIRCUIT

Published:2009/7/15 3:16:00 Author:Jessie | From:SeekIC

Fet gives higher accuracy and higher gain than ordinary transistors or vacuum lubes. At maximum input, output voltage is about three times input voltage. Used to measure mean-squared value of voltages from 5 cps to 100 kc.-Increase the Accuracy of Your Squaring Circuits with Silicon Field-Effect Transistors (Texas Instruments ad), EEE, 11:7, p 6-7.
