SPARK_MACHINING_SERVO_DRIVE

Published:2009/7/13 0:03:00 Author:May | From:SeekIC

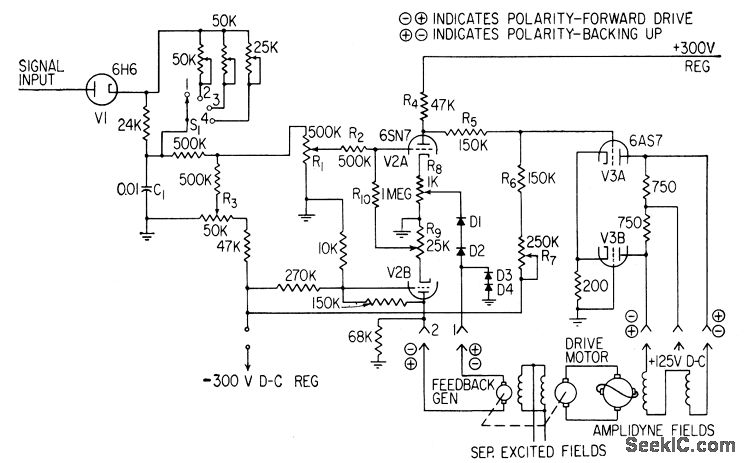

Posilioning information is derived from gap voltage, fed to integrating circuit through diode V1, and resuhing output fed through V2 to cath-ode-coupled push-pull d-c amplifier that excites field of amplidyne generator to move tool electrode toward or away from work-piece, as required to permit sparkover at voltage selected for machining conditions desired. Used chiefiy for work on high-tempemture alloys and otherwise unmachinoble materials.-E. M. Williams and C. P. Porterleld, Spark Machine Tool has Servo Control, Electronics,31:43,p90-92.
