SOUARE_WAVE_DIVIDER

Published:2009/7/6 3:22:00 Author:May | From:SeekIC

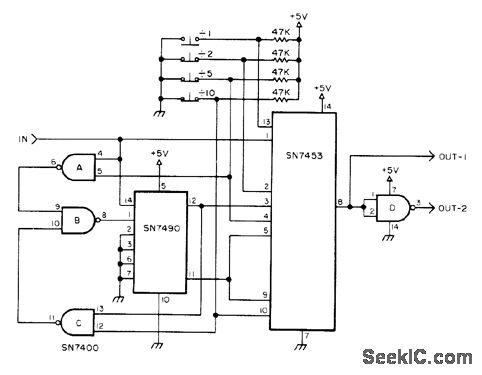

Divides input square wave by 1, 2, 5, or 10 depending on which switch is open. Signal at OUT-1 is inverted with respect to input, and OUT-2 is noninverted.-Circuits, 73 Magazine, June 1977, p 49.
