SOLION_INTEGRATING_NOISE_METER

Published:2009/7/16 4:14:00 Author:Jessie | From:SeekIC

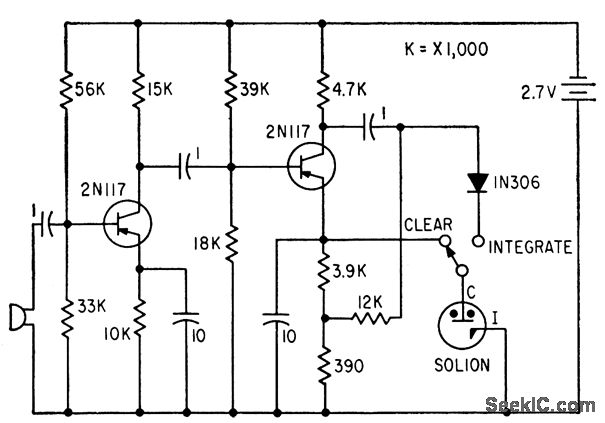

Audio amplifier for microphone feeds visual-read-out solion integrator through rectifying diode. Used to measure extent of exposure of per son to dangerously high levels of noise.-R. N. Lane and D. B. Cameron, Current Integration with Solion Liquid Diodes, Electronics, 32:9, p 53-55.
