SMOOTHED_D_C_FROM_F_M

Published:2009/7/15 4:08:00 Author:Jessie | From:SeekIC

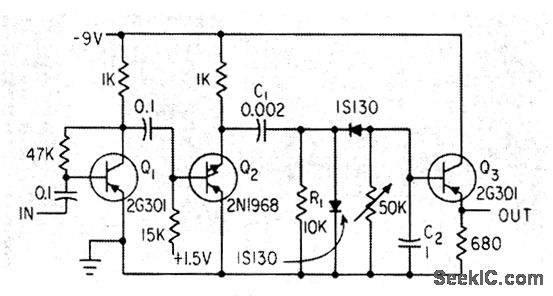

Mean d-c level, derived from f-m data on magnetic tape, undergoes R-C smoothing in three-transistor pulse-counting demodulator circuit so output can be fed to cro.-K.R. Whittington, Simple F-M Demodulator for Audio Frequencies, Electronics, 35:48, p89.
