SLOW_MAKE_RELAY

Published:2009/7/14 23:37:00 Author:Jessie | From:SeekIC

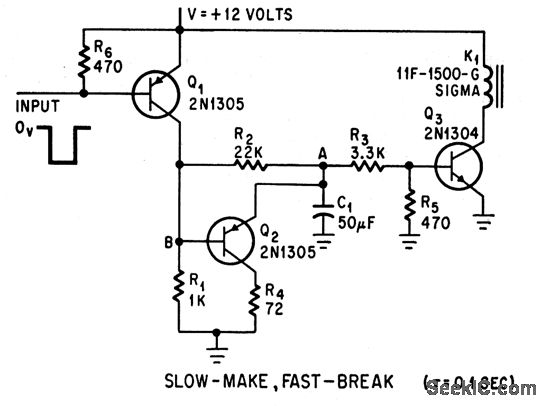

Circuit energizes relay with delay controlled by R2-C1 after driving pulse is applied. Relay de-energizes the instant driving pulse is removed.-P. Haas, Timing Circuits Control Relays, Electronics, 38:6,p85.
