SLOW_BREAK_RELAY

Published:2009/7/15 2:48:00 Author:Jessie | From:SeekIC

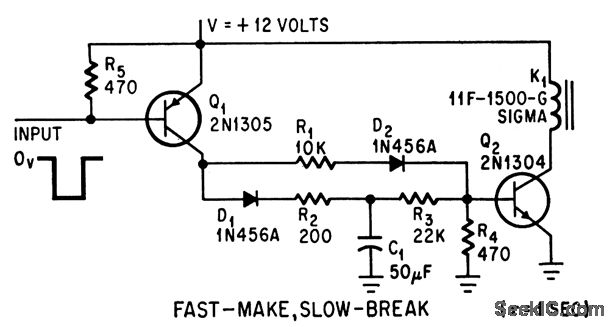

R3-C1 determine period that relay remains energized after input pulse is removed.-P. Haas, Timing Circuits Control Relays, Electronics, 38:6, p 85.
