SINGLE_TIMER_IC_PROVIDES_SQUARE_WAVE_TONE_BURSTS

Published:2009/7/6 5:01:00 Author:May | From:SeekIC

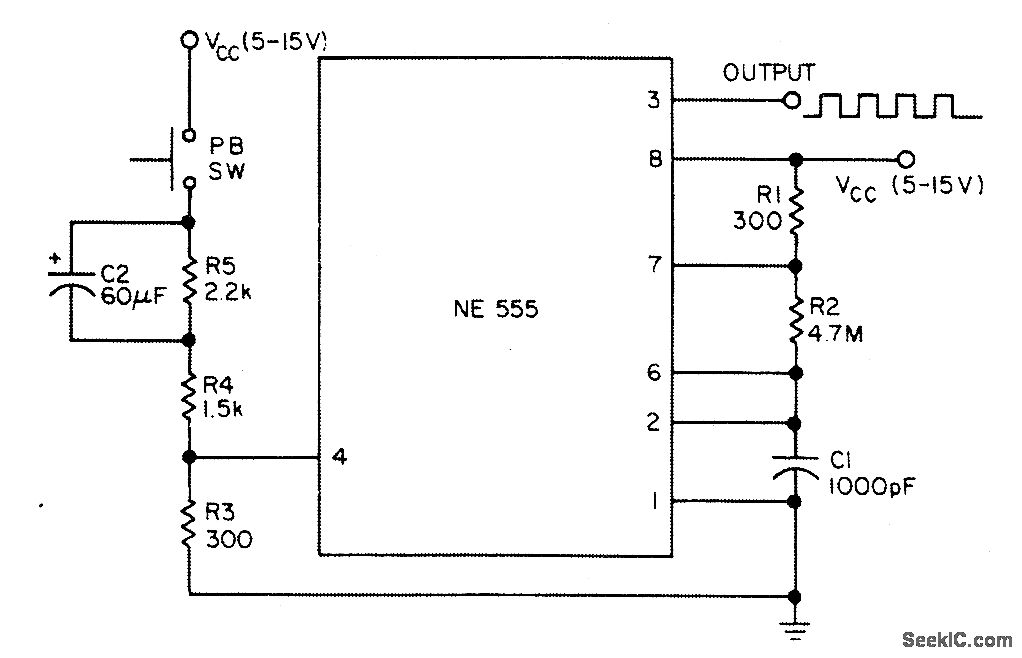

The tone-burst generator gives a 50-ms burst of 1.5 kHz square waves with each operation of the pushbutton and can source or sink 200 mA.
