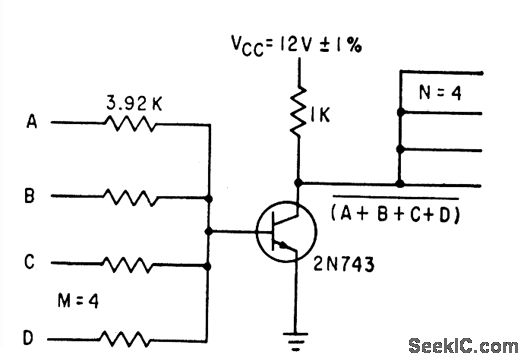

SINGLE_SUPPLY_NOP_GATE

Published:2009/7/16 5:15:00 Author:Jessie | From:SeekIC

Low storage time allows medium-speed operation without turn-off base bias supply. Maximum is 1 Mc for two cascaded logic stages.-D. Hull, Using Epitaxial Transistors in Switching and R-F Circuits, Electronics, 34:13, p 52-53.
