SINGLE_INJECTOR_TRACER

Published:2009/7/3 3:38:00 Author:May | From:SeekIC

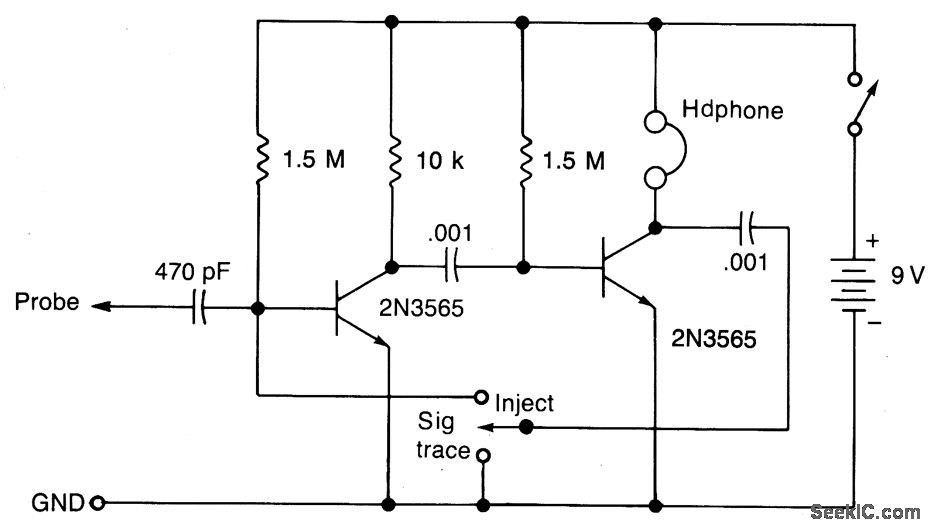

Circuit NotesThis circuit will provide a nominal square wave output in the audio range in the Inject mode, the harmonics of which should be heard at several MHz. In the Trace mode the non-linear operation of the amplifter will detect modulated rf signals which will be filtered by the.0.01μF capacitor and heard in the headphones.
