SINGLE_ENDED_CLASS_B_OUTPUT

Published:2009/7/14 23:41:00 Author:Jessie | From:SeekIC

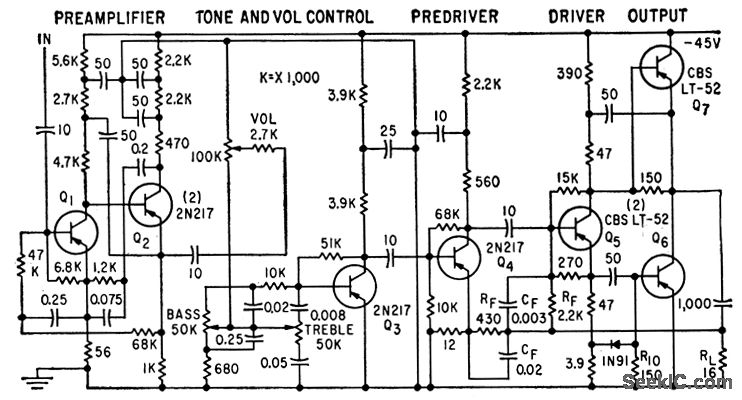

High-fidelity 10-w amplifier uses capacitor and diodes to couple class A driver,to single-ended class B output feeding 16-ohm speaker. Input stages are equalized for RIAA curve. Frequency response is flat within 1.5 db from 30 to 15,000 cps.-H.C.Lin and B.H.White,Single-Ended Amplifiers for Class B Operation Electronics,32:22,p 86-87.
