SIMPLE_METRONOME

Published:2009/7/1 2:25:00 Author:May | From:SeekIC

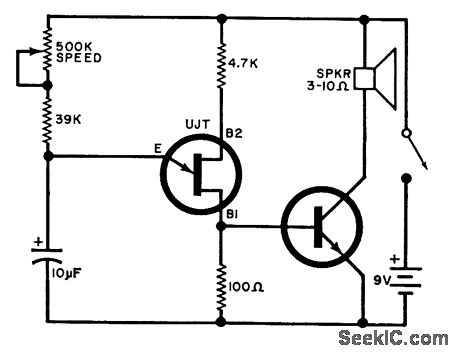

Adjustable from 15 to 240 beats per minute. The UJT oscillator output is applied to a general purpose npn transistor which drives the speaker.UJT＝2N4871NPNxistor＝TIP31
