SIMPLE_ELECTRONIC_METRONOME

Published:2009/7/10 21:20:00 Author:May | From:SeekIC

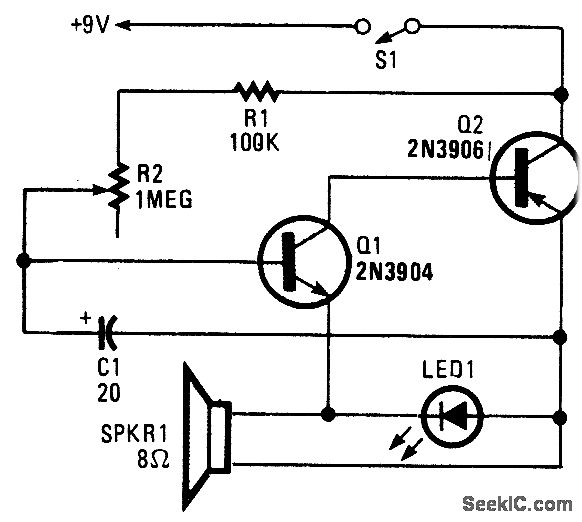

Two complementary transistors form a simple oscillator whose frequency range is from about 0.5 to several Hz. This circuit is useful as a metro-nome, timer, or pacer for exercise equipment.
