SIMPLE_ABSOLUTE_VALUE_CIRCUIT

Published:2009/7/10 2:33:00 Author:May | From:SeekIC

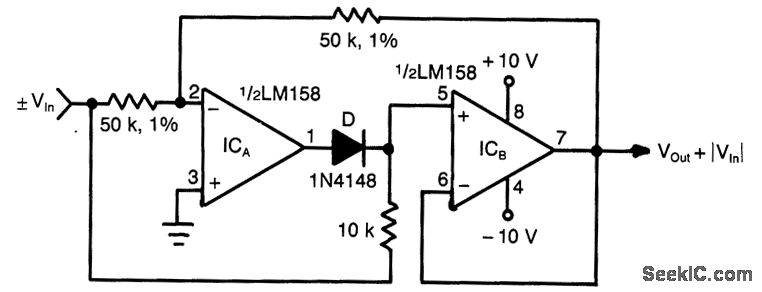

When an input voltage is positive, the output of ICA is negative and diode D does not conduct; hence the output of ICB is positive. On the other hand, when the input is negative, the output of ICA is positive.D will conduct and cause the absolute value, expressed as a positive voltage, to appear on the noninverting input of ICB and on the circuit's output. The circuit'sdynamic range extends from zero to the point at which the op amp saturates. The band-width is determined by the characteristics of the diode and the high-frequency performance of the op amp.
