SIGNAL_VOLTAGE_STABILIZER

Published:2009/7/10 5:31:00 Author:May | From:SeekIC

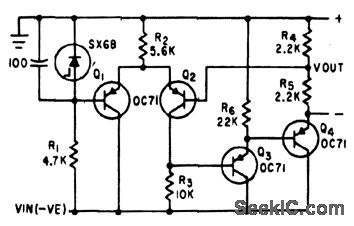

Main amplifier is followed by emffier-followers to reduce fraction of d-c load current fowing in collector load of omplifier. In this conventional arrangement, overall gain is only about 500.-T. K. Hemingway, Applications of the Constant-Current Diode, Electronics, 34:42, p 60-63.
