SIGNAL_BRIDGE_FET

Published:2009/7/16 1:51:00 Author:Jessie | From:SeekIC

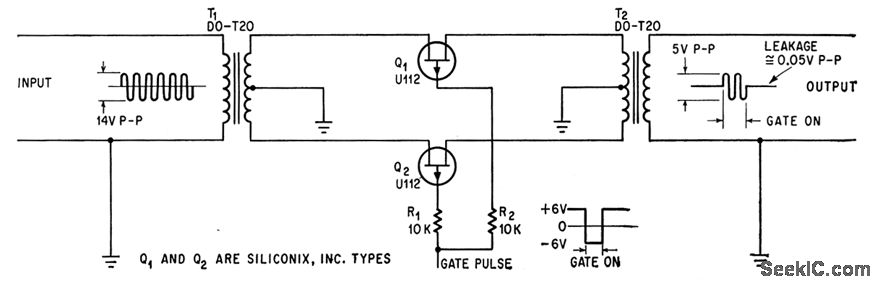

Provides pulsed c-w output from 300- kc c-w input．On-off ratio is 50 db. Insertion loss is 15 db with 510-ohm output load. Requires no adjustment. Used in sonar experiments.-F. J. Murphree and J. Bealor, FET in Bridge Circuit Gates a 300-KC Signal, Electronics, 38:9, p 60-61.
