SHUNT_PIN_DIODE_RF_SWITCH

Published:2009/7/14 1:56:00 Author:May | From:SeekIC

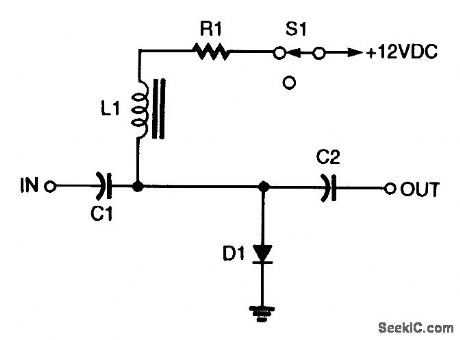

D1 is a PIN diode (MV3404) used as a switch, with dc bias supplied via R1 and L1.This shunt PIN-diode switching circuit directs signals to ground when D1 is forward-biased.
