SHIFT_REGISTER

Published:2009/7/1 21:21:00 Author:May | From:SeekIC

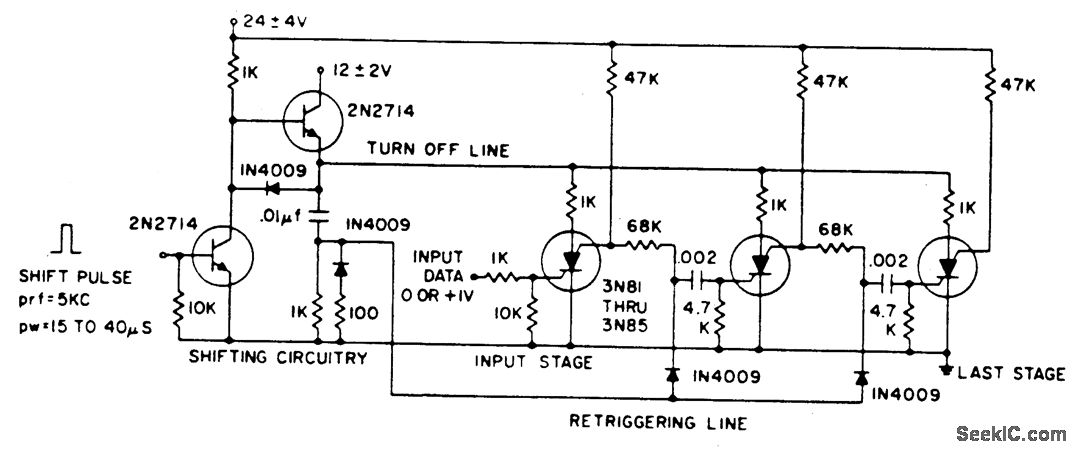

The shift pulse amplitude is less than 15 volts. If a stage is off, the shift pulse will no, be coupled to the next stage. If it is on, the diode will conduct triggering the next stage. Just prior to the shift pulse the anode supply is interrupted to turn off all stages.The stored capacitor charge determines which stages will be retriggered.
