SET_TESET_LATCH

Published:2009/7/6 7:23:00 Author:May | From:SeekIC

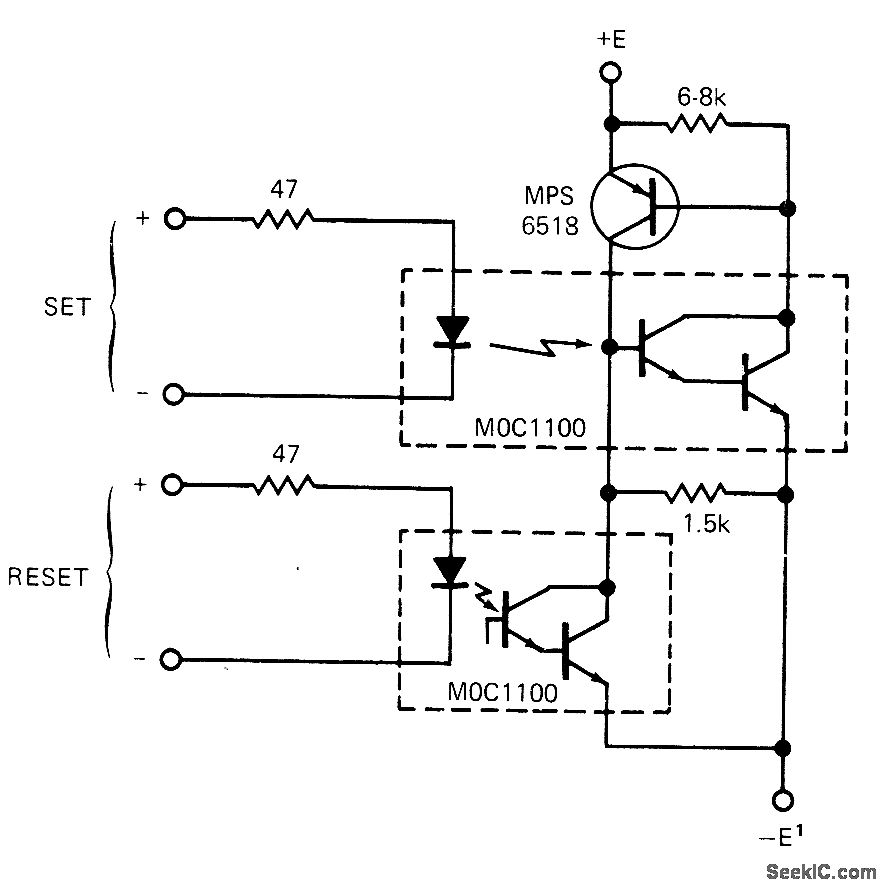

Provides almost complete isolation between each input and the output, as well as between inputs. Applying 2-V pulse at 14 mA momentarily to SET terminals allows up to 150 mA to flow between output terminals. This current flows until about 2 V at 15 mA is appkied to REST terminals or untilload voltage is reduced enough to drop load current below 1 mA.-R.N. Dotson, Set-Reset Latch Uses Optical Couplers, EDN Magazine, Jan.5, 1973, p 107.
