SERIES_SCR_LAMP_FLASHER_HANDLES_A_WIDE_RANGE_OF_LOADS

Published:2009/6/30 22:56:00 Author:May | From:SeekIC

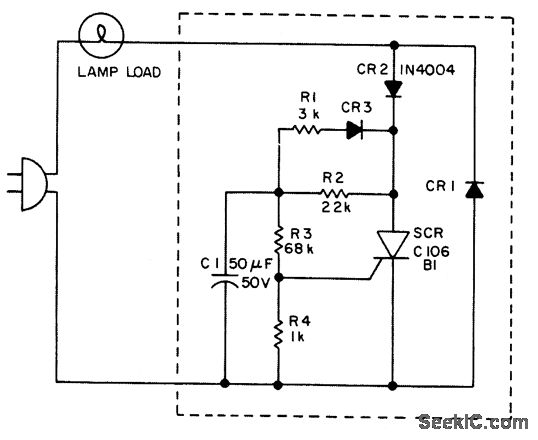

Brief full-power flashes are obtained when the SCR conducts during positive half cycles of the line voltage. The SCR fires when the voltage at the divider, R3 and R4, reaches the gate-firing level. Diode D1 conducts during the reverse cycle of the SCR and provides preheating current to the lamp filaments.
