SERIES_PNP_BASIC_LOGIC

Published:2009/7/16 5:14:00 Author:Jessie | From:SeekIC

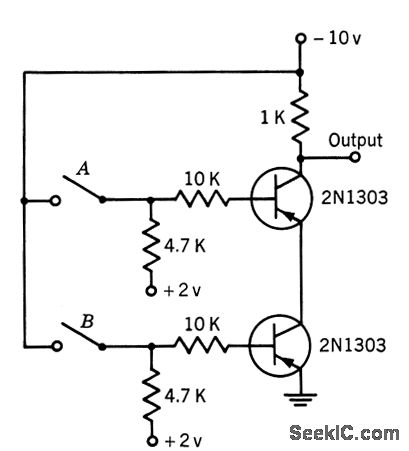

Serves as and gale for normally open switches, and as or gate for normally closed switches. Provides phase inversion of input.-Texas Instruments Inc., Transistor Circuit Design, McGraw-Hill, NY, 1963, p 388.
