SCR_LIGHT_DIMMER

Published:2009/7/13 4:23:00 Author:May | From:SeekIC

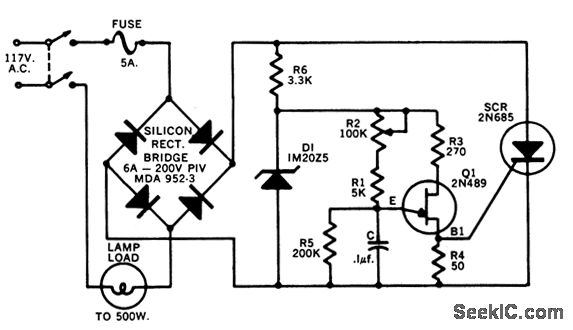

Provides full range of brightness control for up to 500w of lamps.Ujt Q1 provides turn.on pulses for scr-L.Stern, Thyristors Provide New Opportunities for Electronic Applications in the Home, Motorola Application Note AN-141, Dec.1965.
