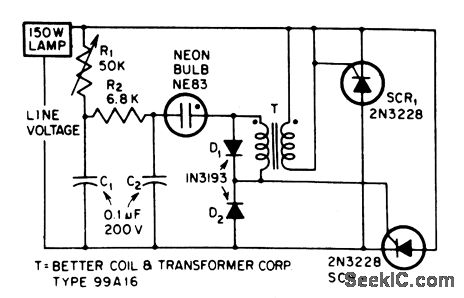

SCR_LAMP_DIMMER

Published:2009/7/13 2:55:00 Author:May | From:SeekIC

Can easily be built into lamp socket or fixtore.-J. Eimbinder, SCRs in The Consumer Market, EEE, 14:8, p100-103.
