SAMPLE_READOUT_AMPLIFIER

Published:2009/7/20 21:13:00 Author:Jessie | From:SeekIC

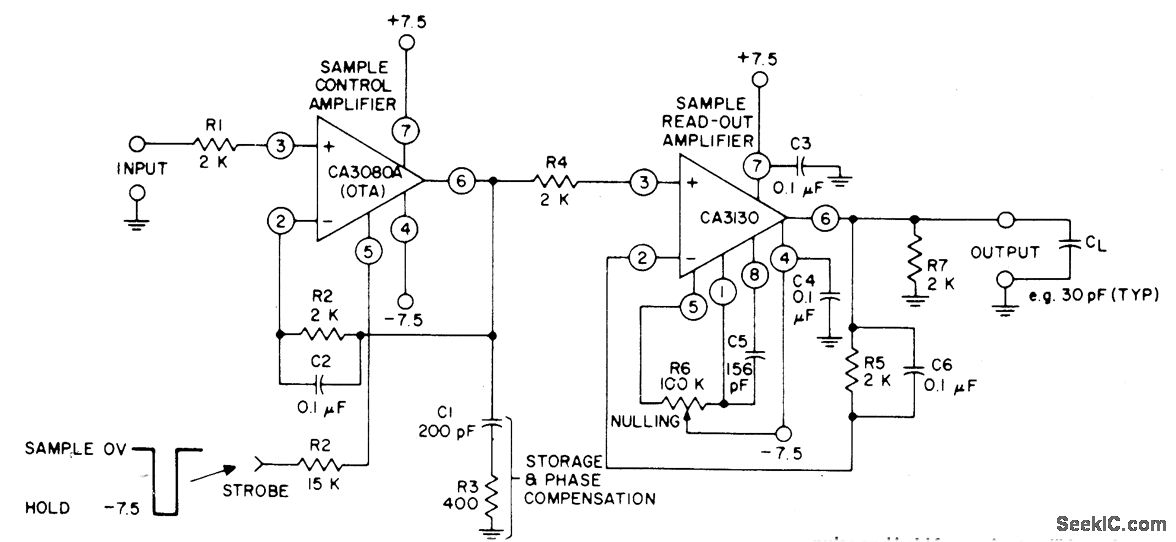

RCA CA3080A oporational trans conductance amplifier feeds CA3130 to give amplification of sampled signal. Input voltage is sampled for duration of strobe pulse and held for readout.- Linear Integrated Circuits and MOS/FET's, RCA Solid State Division,Somerville,NJ,1977,P165－170.
