SAMPLE_AND_HOLD_CIRCUIT

Published:2009/7/6 5:25:00 Author:May | From:SeekIC

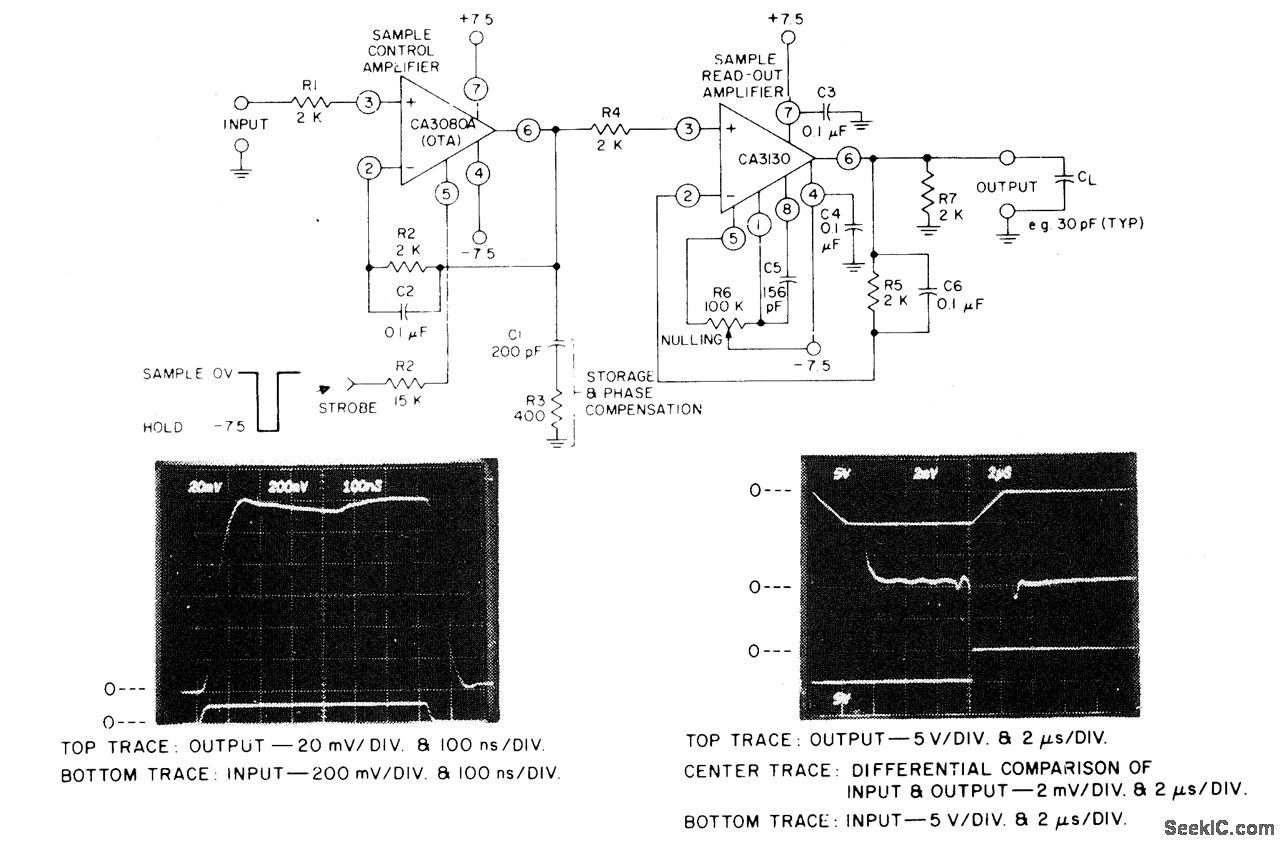

Circuit Notes The circuit uses a CA3130 BiMOS op amp as the sample-readout amplifier for the storage (sample-holding) capacitor C1, and a CA3080A as the sample-control amplifler. Applications in linear systems to temporarily store analog data include DVM systems, industrial process-control, multiplex systems, and A-D converters.
